SMD LED

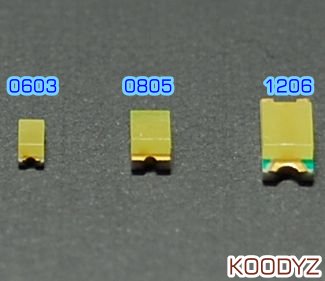

| 0603 SIZE | 0805 SIZE | 1206 SIZE |
0603 SIZE 表面黏著型發光二極體
電壓:2.0-4.0V
電流:30ma(MAX)
顏色:白/籃/紅
角度:140度
價格
白光1PCS/NT8 100PCS以上每顆NT6.5
籃光1PCS/N8 100PCS以上每顆NT5.0
紅光1PCS/NT8 100PCS以上每顆NT4
備註 訂購數量最少10PCS
注意:焊接溫度不能超過260度5秒鐘
Basic spec is < 5sec when 260℃. If temperature is higher, time should be shorter(+10℃?? -1sec ).Power dissipation of iron should be smaller than 15W,and temperatures should be controllable .Surface temperature of the device should be under 230℃.
