CREE24核心20W

電壓:VF=25V
電流:250ma(MAX)
顏色:白光
色溫: 4000K
ROHS PASS

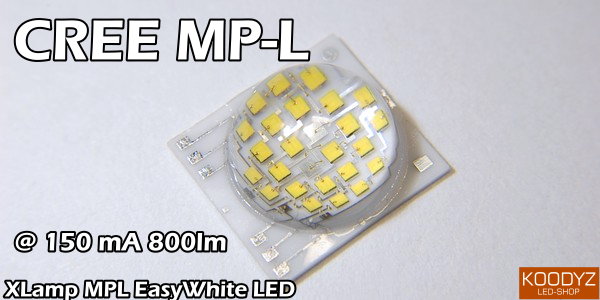

The XLamp MPL EasyWhite LED offers the performance, color consistency and lumen density to displace
conventional light sources, in a breakthrough 12mm x 13mm package design. Combining Cree EasyWhite
technology with up to 1500 lumens of light at 250mA, the MPL EasyWhite simplifies system design and
increases color consistency enabling new applications previously achievable only through the use of multiple
LED components. The MPL EasyWhite LED is the perfect choice for lighting applications where high luminous
flux output is required from a single, small point source. Examples of specific applications include:
commercial/retail display spotlights, LED retrofit bulbs, and other indoor and outdoor general-illumination applications.

The MPL EasyWhite further broadens Cree's portfolio of application-optimized LEDs, specifically designed to
meet the needs of the lighting industry.

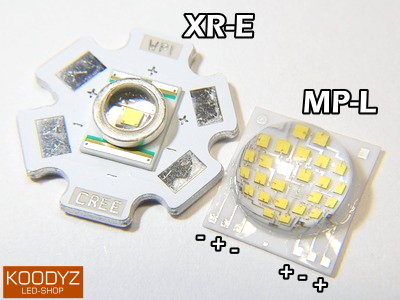

獨特使用8串連3組架構封裝.一般驅動電壓25v/150ma.3組=25v/450ma 約11.25W

因此在VF26.5V/250ma*4=750情況之下.高達19.875W@1500lm (4000K).

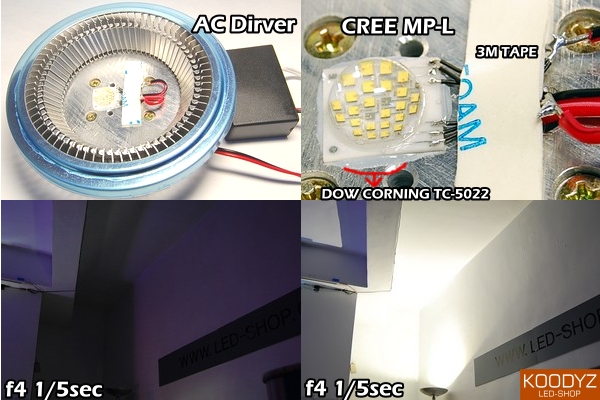

經過實測MP-L亮度與產生的熱量超越期待.一盞MP-L燈具當臥室主燈都沒有問題





Download Datasheet



CREE MP-L 1pcs/ NTD2300

需預訂

　 尺寸：13.15mm×12.15mm×6.1mm
　 光束：800lm
　 順方向電流：25V (150ma)
　 順方向電流：250mA（max）
　 指向性：125°
　 色溫度：4000K (另有低色溫可出貨)





Features

• EasyWhite color temperatures
• High lumen density
• Minimum 80 CRI (2700K, 3000K)
• Electrically isolated thermal path
• Wide viewing angle (125°)

Lighting Applications

• Commercial/residential directional lighting
• LED retrofit bulbs
• General indoor/outdoor illumination





































VERY EASY



































上架日期2010/7/19
