LED通販

全系列產品價格請mail發問

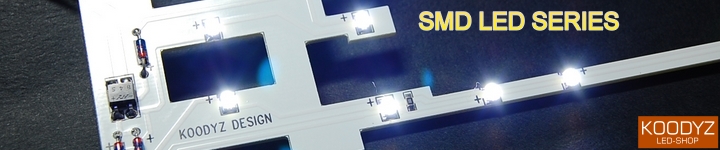

SMD LED

0603 SIZE

0805 SIZE 1206 SIZE

0603 LED一捲2K/Reel NT4600

SMD LED全系列量大或整捲買另外報價



PLCC LED (3020)

UBLEDS製造,正規品 3020 白光LED一捲2K/Reel NT6900 現貨.烘烤完可出貨

白光色溫可挑選5000K 6000K 7000K 10000K 量大另外報價

PART NO. color cct(K)/(nm) Iv(mcd)(lm)max VF(typ) IF(ma) Price 1-50 Price 50-100
KO-3020W 5000-8000K 1500mcd 3.3V 25ma 10 8.7
KO-3020WW 2800-3100K   3.3V 25ma older older
KO-3020R 620-630nm   2.1v 25ma 10 8.2
KO-3020B 465-475nm   3.3V 25ma 10 8.2
KO-3020G 520-535nm   3.3V 25ma 10 9

PLCC LED (3528)

UBLEDS製造,正規品 3528 白光LED一捲2K/Reel NT8000 現貨.烘烤完可出貨

白光色溫可挑選5000K 6000K 7000K 10000K 量大另外報價

PART NO. color cct(K)/(nm) Iv(mcd)(lm)max VF(typ) IF(ma) Price 1-50 Price 50-100
KO-3528W 5000-10000K   3.3V 20ma 10 8.7
KO-3528WW 2800-3100K   3.3V 20ma older older
KO-3528R 620-630nm   2.1v 20ma 10 8.2
KO-3528B 465-475nm   3.3V 20ma 10 8.2
KO-3528G 520-535nm   3.3V 20ma 10 9
KO-3528P 400nm UV   3.3V 20ma 25 22
KO-3528I 850nm   1.5V 30ma 15 12

PLCC LED (3528)0.5watt


UBLEDS製造,正規品

PART NO. color cct(K)/(nm) Iv(mcd)(lm)max VF(typ) IF(ma) Price 1-50 Price 50-100
KO-3528AW 5000-8000K   3.3V 20ma older older
KO-3528AWW 2800-3100K   3.3V 20ma older older
KO-3528AR 620-630nm   2.1v 20ma older older
KO-3528AB 465-475nm   3.3V 20ma older older
KO-3528AG 520-535nm   3.3V 20ma older older

side view LED (335)


UBLEDS製造,正規品

PART NO. color cct(K)/(nm) Iv(mcd)(lm)max VF(typ) IF(ma) Price 1-50 Price 50-100
KO-SVW 5000-8000K 1010mcd 3.3V 20ma 10 8
KO-SVY 585-595nm   3.3V 20ma older older
KO-SVR 620-630nm   2.1v 20ma 10 8
KO-SVB 465-475nm   3.3V 20ma 10 8
KO-SVG 520-535nm   3.3V 20ma older older

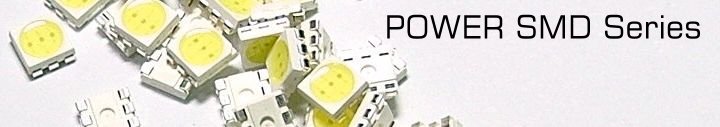

POWER SMD (5050)

UBLEDS製造,正規品

PART NO. color cct(K)/(nm) Iv(mcd)(lm)max VF(typ) IF(ma) Price 1-50 Price 50-100
KO-5050W 5000-8000K 6000mcd 3.3V 40ma 15 12
KO-5050WW 2800-3100K   3.3V 30ma 16 14
KO-5050R 620-630nm   2.1v 30ma 15 12
KO-5050B 465-475nm   3.3V 30ma 15 12
KO-5050G 520-535nm   3.3V 30ma 16 12
KO-5050P 400nm UV   3.3V 30ma older older
KO-5050I 850nm   1.5V 30ma older older

POWER SMD (5074)15mil six chip

UBLEDS製造,正規品
Vendor: 晶元ES-CEDBV10

PART NO. color cct(K)/(nm) Iv(mcd)(lm)max VF(typ) IF(ma) Price 1-50 Price 50-100
KO-5074W 5000-8000K 32lm 3.17V 120ma 25 21
KO-5074WW 2800-3100K   3.3V 50ma older older
KO-5074R 620-630nm   2.1v 50ma older older
KO-5074B 465-475nm   3.3V 50ma older older
KO-5074G 520-535nm   3.3V 50ma older older

POWER SMD LED (5074)1watt





UBLEDS製造,正規品

PART NO. color cct(K)/(nm) Iv(mcd)(lm)max VF(typ) IF(ma) Price 1-50 Price 50-100
KO-5074AW 5000-8000K 70lm 3.4V 350ma older older
KO-5074AWW 2800-3100K   3.4V 350ma older older
KO-5074AR 620-630nm   2.2v 350ma older older
KO-5074AB 465-475nm   3.4V 350ma older older
KO-5074AG 520-535nm   3.4V 350ma older older

POWER SMD LED (5070) 9chip







UBLEDS製造,正規品

PART NO. color cct(K)/(nm) Iv(mcd)(lm)max VF(typ) IF(ma) Price 1-50 Price 50-100
KO-5070BW 5000-8000K 71lm 9.9V 50ma 50 43
KO-5070BWW 2800-3100K   9.9V 50ma older older
KO-5070BR 620-630nm   6.6v 50ma older older
KO-5070BB 465-475nm   9.9V 50ma older older
KO-5070BG 520-535nm   9.9V 50ma older older

SEOUL Z1 LED (ceramics)super 8chip 2.2watt







NICHIA 183 PIN TO PIN

PART NO. color cct(K)/(nm) Iv(mcd)(lm)max VF(typ) IF(ma) Price 1-10 Price 10-50
KO-XZ10150W 5000-8000K 105 4.1V 450ma 122 105
KO-XZ10150WW 2800-3100K 80 4.1V 450ma older older







台北土城封裝廠.非大陸封裝
